Bosch Rexroth Integrated Measuring System integrates the measuring technology into the linear guide results in a mechatronic system that combines the ability to guide mechanical loads and to measure length in one product. No external measuring systems are needed.

REQUEST INFO AND QUOTATIONS

Bosch Rexroth Integrated measuring systems IMS

Bosch Rexroth Integrated measuring systems

Rexroth ball rail and roller rail systems can be supplied with a completely integrated, inductive linear measuring system. The length measuring system consists of a scanner, a scale, reference marks, and the absolute code band. The Scanner with sensors is mounted on the runner block.

As it travels over them, it evaluates the scale, the reference marks or the absolute code band integrated in the rail. This mechatronic system combines the functions of guidance and measurement into one unit and opens up new, ideal opportunities in machine design.

Integrated Measuring System for Ball and Roller Rail Systems

Integrating the measuring technology into the linear guide results in a mechatronic system that combines the ability to guide mechanical loads and to measure length in one product. No external measuring systems are needed.

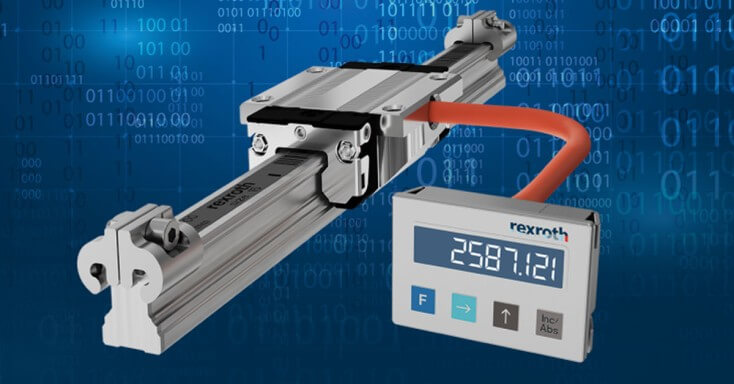

Integrated measuring system IMS compact

Mount & Guide & Measure: fully adjusted Plug & Play complete system
Construction-space neutral, integrated measuring head electronics
Sizes 15, 20, and 25 in six runner block designs
Wrappable scale, can be installed over joints
Dirt-resistant magnetic measuring principle
